Wolf2 All-mode Transceiver
HF: 160m-10m,
VHF: 6m, WB, 2m,
UHF: 70cm, 23cm

7" LCD Display Board
Very First Test Reception

FT-8/FT-4/SSTV Decoder/TX

Testing Wolf2 in Old Chassis

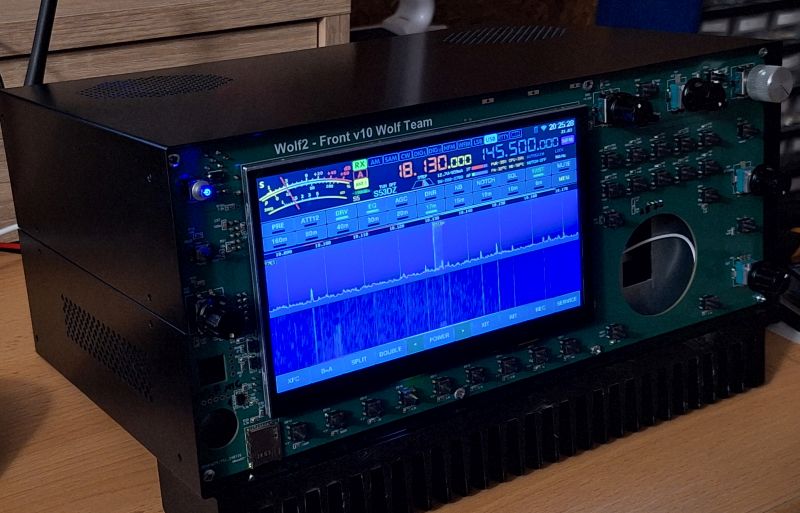

Wolf2 Enclosure
(Mechanics by Bojan S56FPW)

HF TX PA

HF TX LPF Rev2

VHF TX PA Hybrid on old VHF v03 PCB

Wolf2 Revisions, Additions, Preliminary Measurements

60MHz HF RX Input LPF Rev1
Schematics

60MHz HF RX Input LPF Rev1
Plot

6m Preamplifier with Input BPF
W/o by-pass relays and enclosure

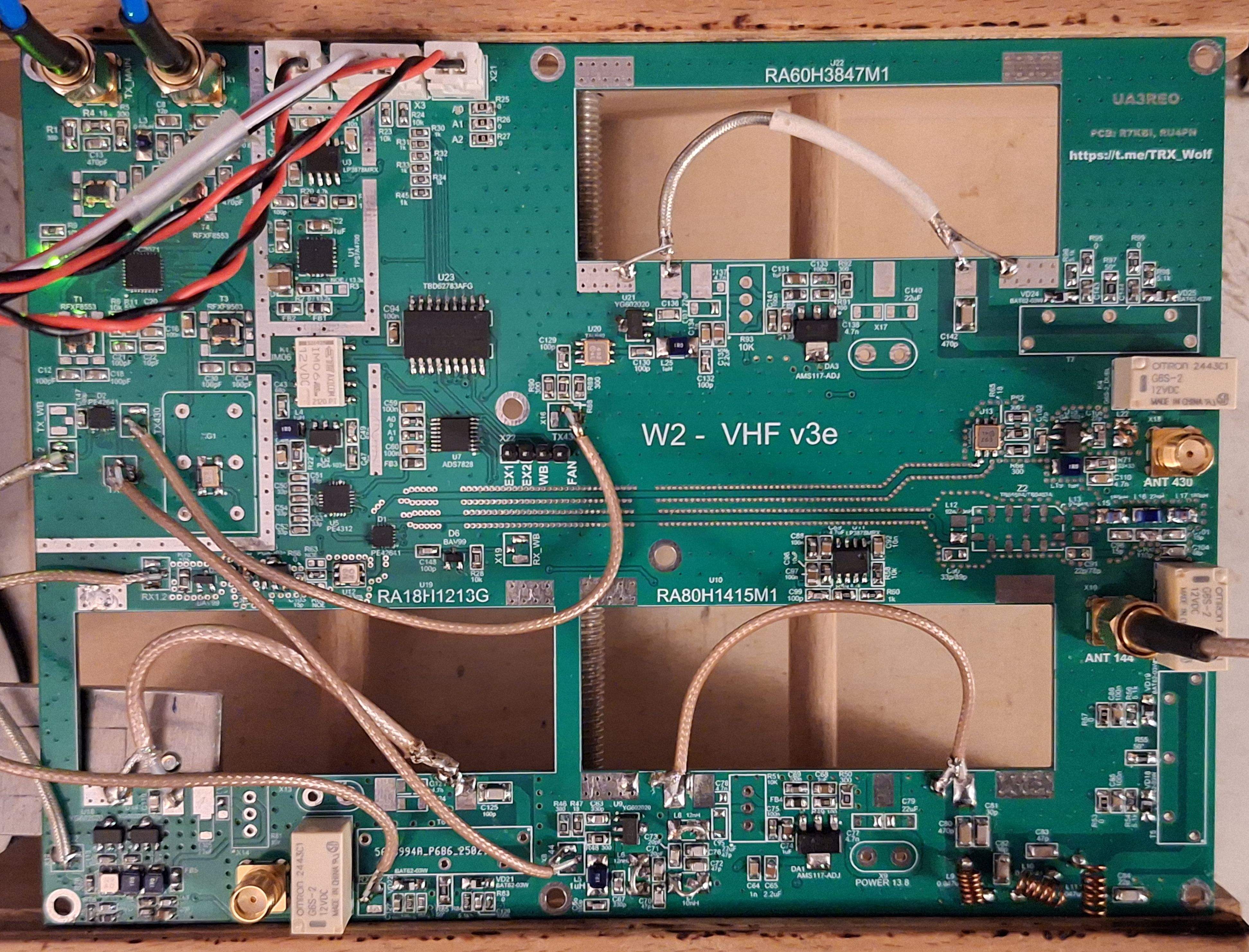

VHF/UHF v3f Board Testing

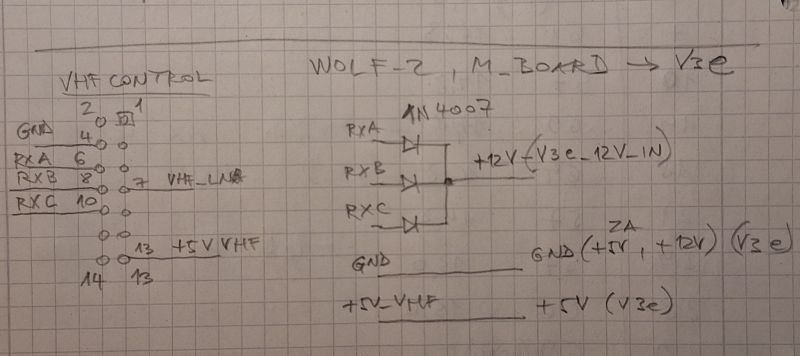

MB --> v3f Board DC-Supply

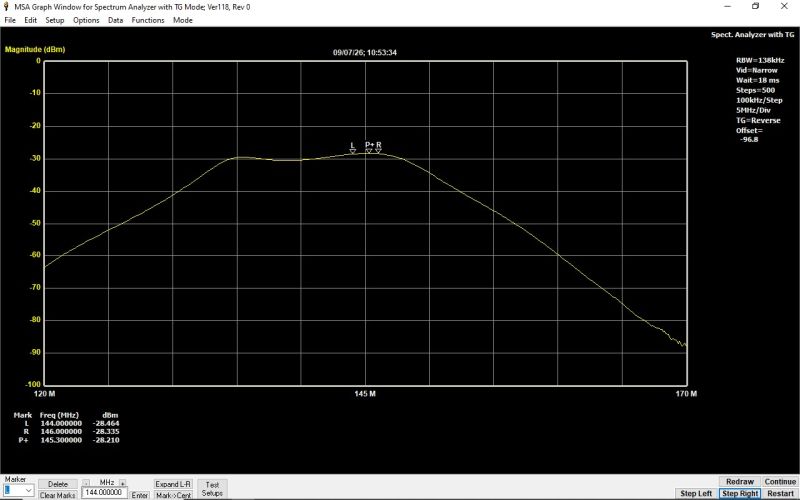

v3f TX path from IF 48MHz to RF 145MHz
Span 50MHz, RF att 50dB

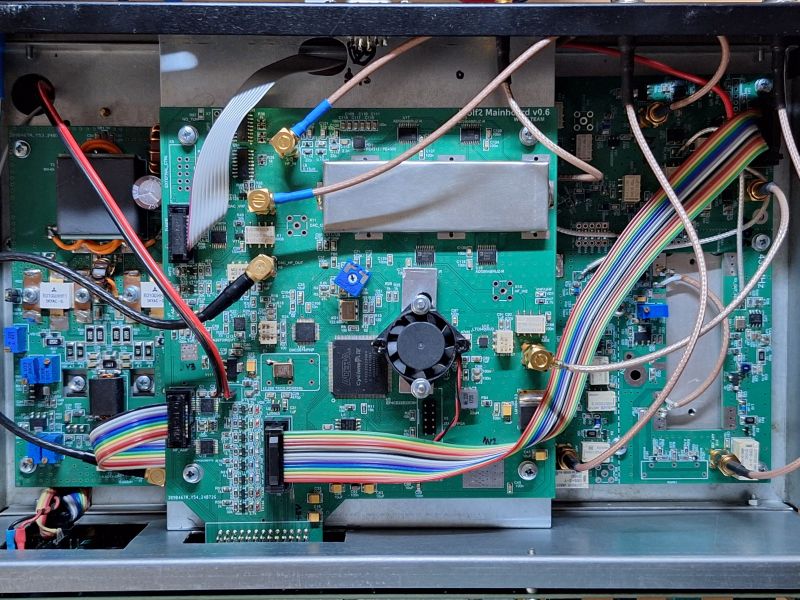

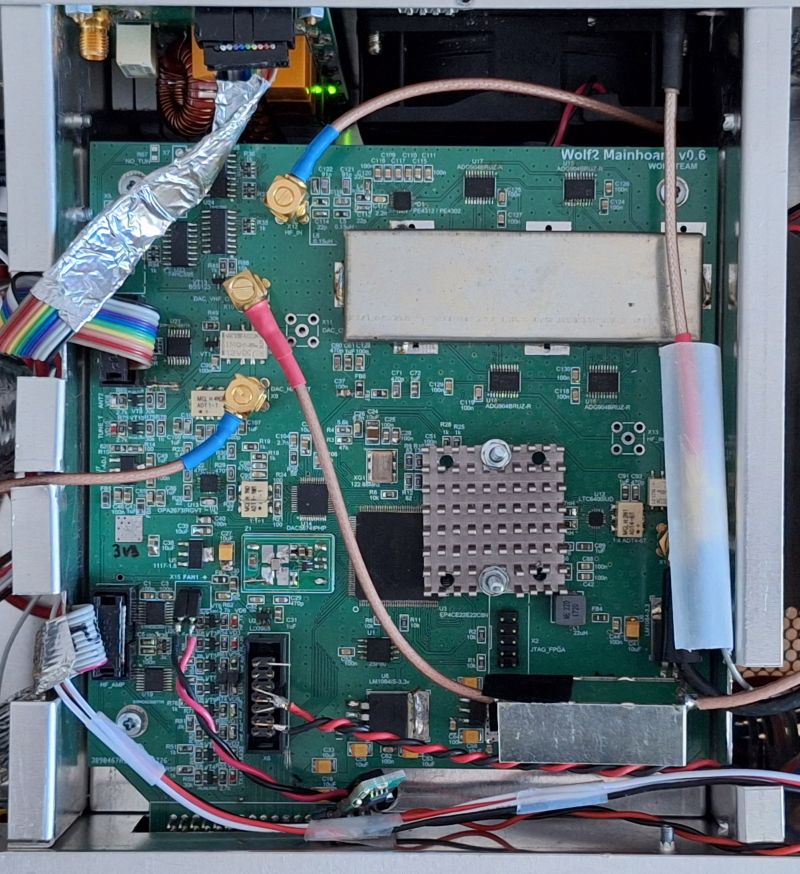

Main Board

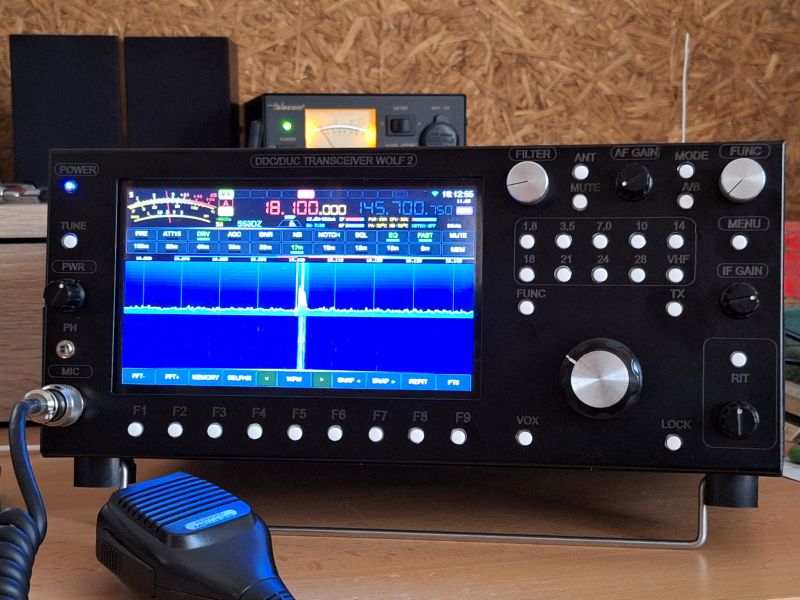

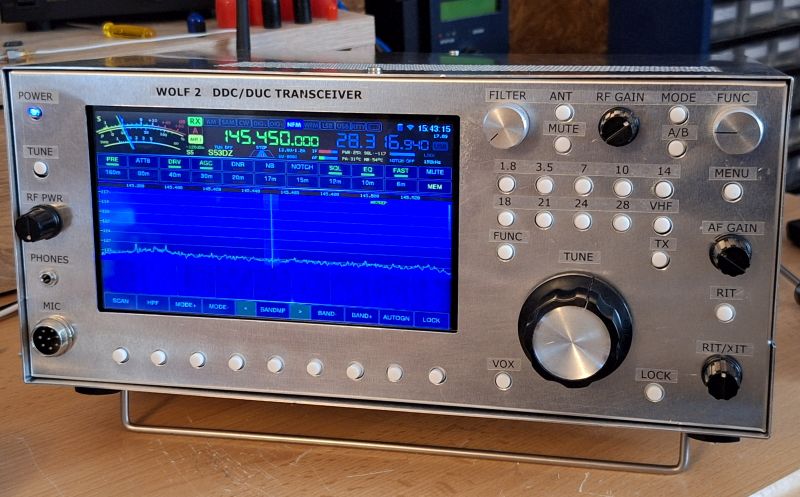

Wolf2 Front

• HF RX BPF Measurements (pdf)

• HF/VHF TX LPF/BPF Measurements (pdf)

• UHF RX/TX BPF Measurements (pdf)

• HF RF Power Measurements (pdf)

• 60 MHz HF RX Input LPF Revision (pdf)

• DACout RF 150 MHz LPF (pdf)

• DACout IF 50 MHz BPF (pdf)

• 6m Preamplifier Schematics Rev1.2 (pdf)

• 6m Preamplifier Measurements (pdf)

• Missing 6m RX BPF - Proposal (pdf)

• ToDo Wolf2 - SLO (pdf)

• Programming Wolf2 (pdf)

• Revisions (UA3REO page)
