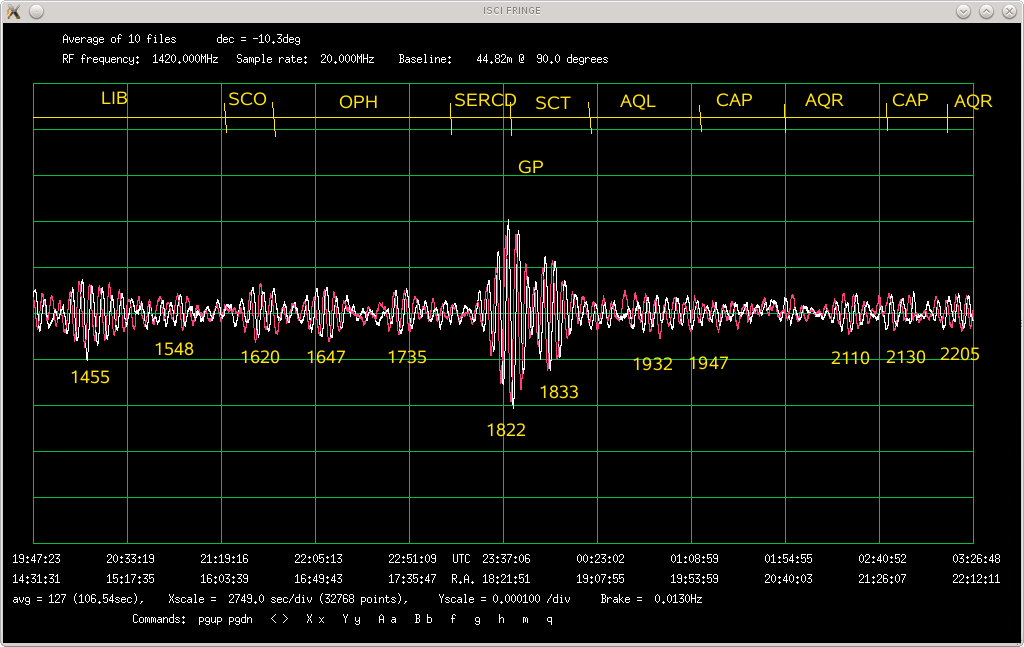

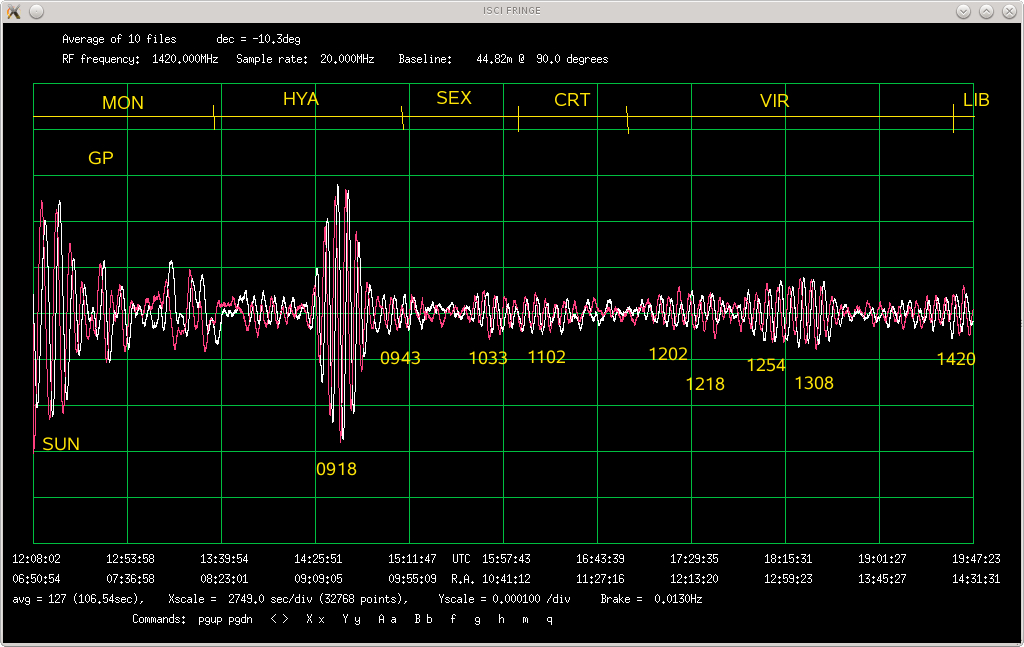

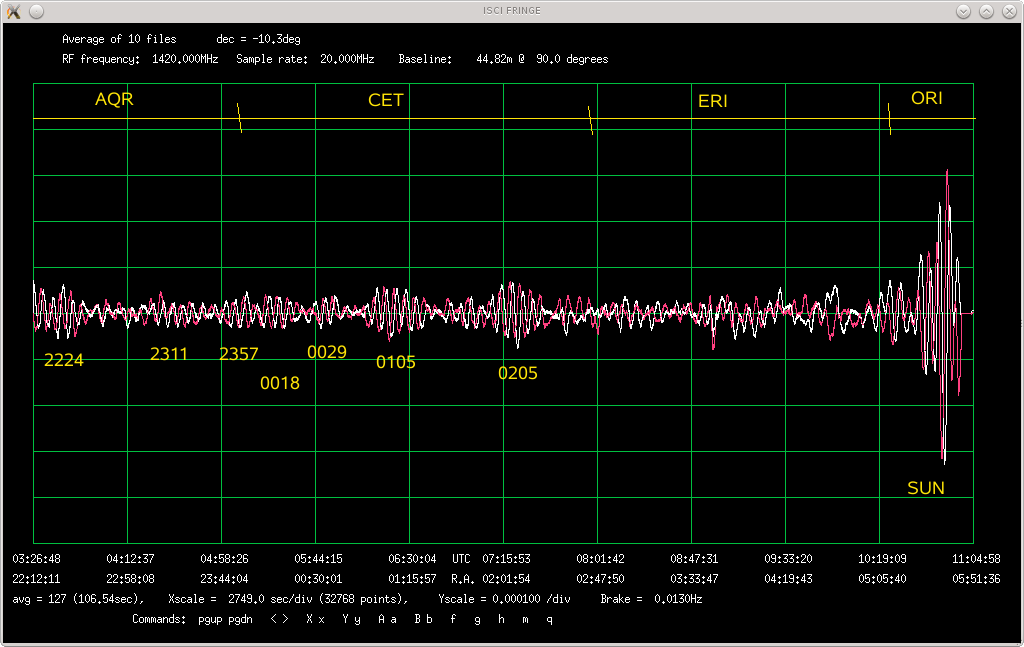

The diagrams below represent 21cm radio sources at -10.5
degrees of declination, as recorded with SIDI 1.2, using two
3m dishes cca 45m apart. The fringe frequency was slowed down
by 13mHz. The data was compiled from drift scans obtained
on days 18,19,20,21,22,24,25,26,27,28 of June 2014. The diagrams cover
almost the whole circle, except for the part where the Sun
was dominant.
I have added the yellow anotations with Gimp. On the top, the
constellations passed by the -10 degree line are indicated, and
"GP" marks the places where the galactic plane is crossed.
The numbers below represent my attempt to identify some of the
sources in the NRAO VLA catalog (see the table below the
diagrams).
0918 NVSS 091805-120541 41Jy -1.5 deg offbeam (=3C218) 0943 NVSS 094336-081932 2.7Jy 2.4 deg offbeam 1033 NVSS 103335-121032 2.0Jy -1.6 deg offbeam 1102 NVSS 110231-094125 1.2Jy 1 deg offbeam 1202 NVSS 120212-104052 1.6Jy 1218 NVSS 121834-101844 1.9Jy 1254 NVSS 125438-123320 5.3Jy -1.8 deg offbeam 1308 NVSS 130839-095031 4.2Jy 1 deg offbeam 1420 NVSS 141510-105748 0.67Jy NVSS 142732-105434 0.6Jy 1455 NVSS 145555-110858 4.2Jy 1548 NVSS 154812-121331 2.8Jy -1.6 deg offbeam 1620 4 sources, between 1 and 2.7 Jy 1647 NVSS 164730-104416 2.1Jy 1735 NVSS 173508-091638 2.2Jy 1.4 deg offbeam 1822 NVSS 182228-093857 5.8Jy 1.2 deg offbeam + 4 others, less than 2.7Jy each 1833 NVSS 183333-103405 6.4Jy 1932 NVSS 193251-081740 1.6Jy 2.5 deg offbeam 1947 NVSS 194759-092015 1.3Jy 1.7 deg offbeam 2110 NVSS 211001-102058 1.2Jy 2130 NVSS 213135-120706 1.8Jy -1.5 deg offbeam 2205 5 sources, less than 1Jy each 2224 NVSS 222407-112621 0.54Jy 2311 NVSS 231116-103850 1.1Jy NVSS 231622-115714 1.8Jy -1.1 deg offbeam 2357 NVSS 235731-112538 1.8Jy 0018 NVSS 001859-102254 1Jy 0029 NVSS 002922-111151 0.76Jy 0105 NVSS 010422-123515 2.1Jy -1.8 deg offbeam NVSS 011612-113614 1.8Jy 0205 NVSS 015741-104340 2.1Jy NVSS 020157-113233 2.7Jy NVSS 021006-105757 1.7Jy
